Technical data sheet :

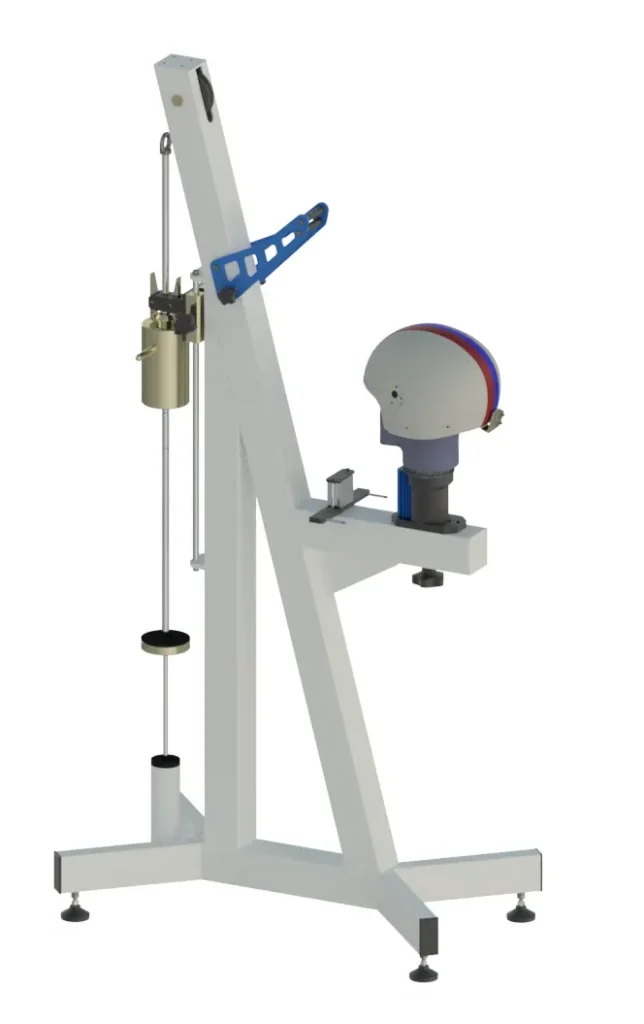

Frame made of painted steel profiles.
- 3 kg preload applied via a bar with a steel disc stop.
- 10 kg drop mass, made of zinc-plated steel, equipped with lifting knobs.
- Manual release of the drop mass using two clamps.
- Manual lifting of the drop mass.
- Adjustable drop height up to 70 cm.
- Height markings at 15, 25, and 50 cm for different drop height tests.
- PU resin headform included, with size selectable by the customer.

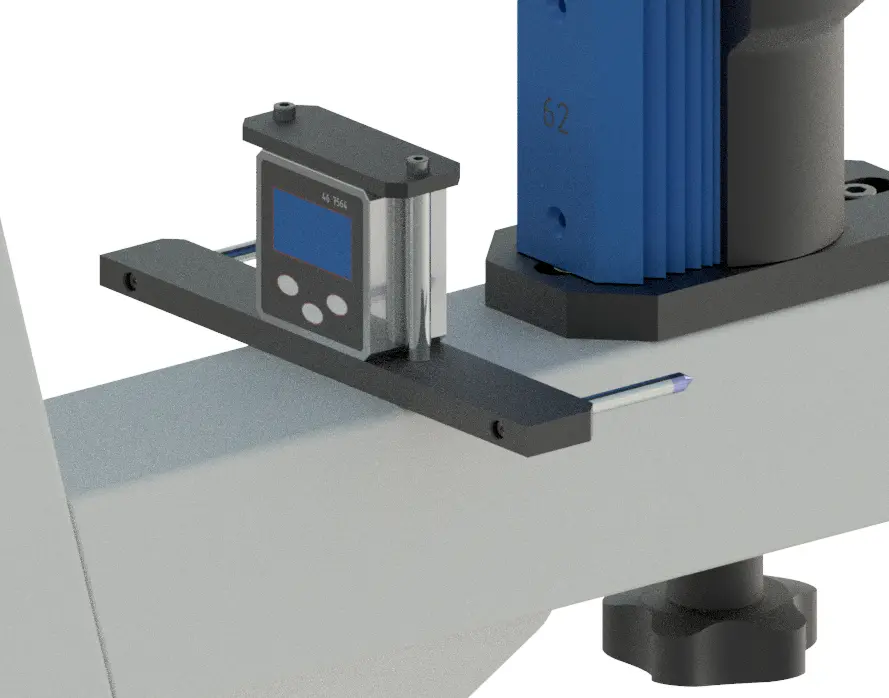

- Helmet rotation measurement via a digital clinometer.
- Additional spacer plates supplied to maintain the required 25 mm distance from the neck of different-sized headforms.
- Total weight: 75 kg.
