MTP 1004 Plus
Rail-guided equipment with contact recording (3m drop height frame). Includes fully adjustable angular positioning, aluminium headform, and electronic contact detector. Manual lifting.
Technical data sheet :
- Frame constructed from ITEM aluminium profiles (80×40 mm and 40×40 mm) designed for drop carriage guidance.
- Automatic electromagnetic release and recovery system for the impactor.

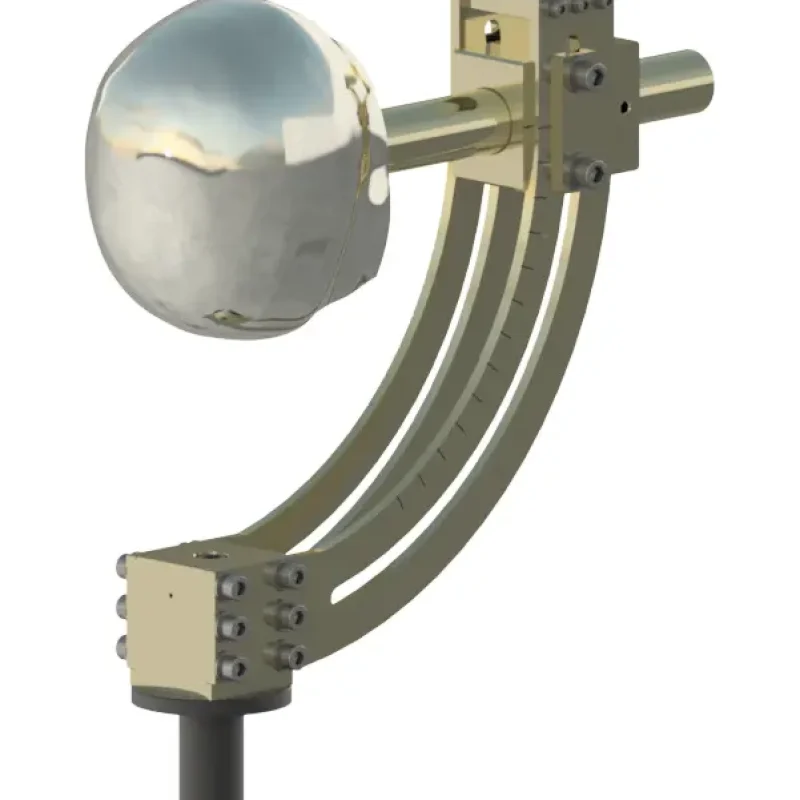

- Aluminium headform featuring full multi-directional angular adjustment.
- Manual lift system for the drop mass, operated via a rope and secure locking cleat.
- Side-mounted scale with reference marks for accurate drop height setting.
- Penetration and contact detector equipped with a GTM & Systems SA electronic circuit, including audible and visual alarms.
- Two strikers supplied (compliant with JIS and SNELL standards).
- Penetration depth measurement system (ENC 1091) available as an option.
- Weight: 100 kg.
- Overall dimensions: 700 × 550 × 4400 mm.
