Technical data sheet :

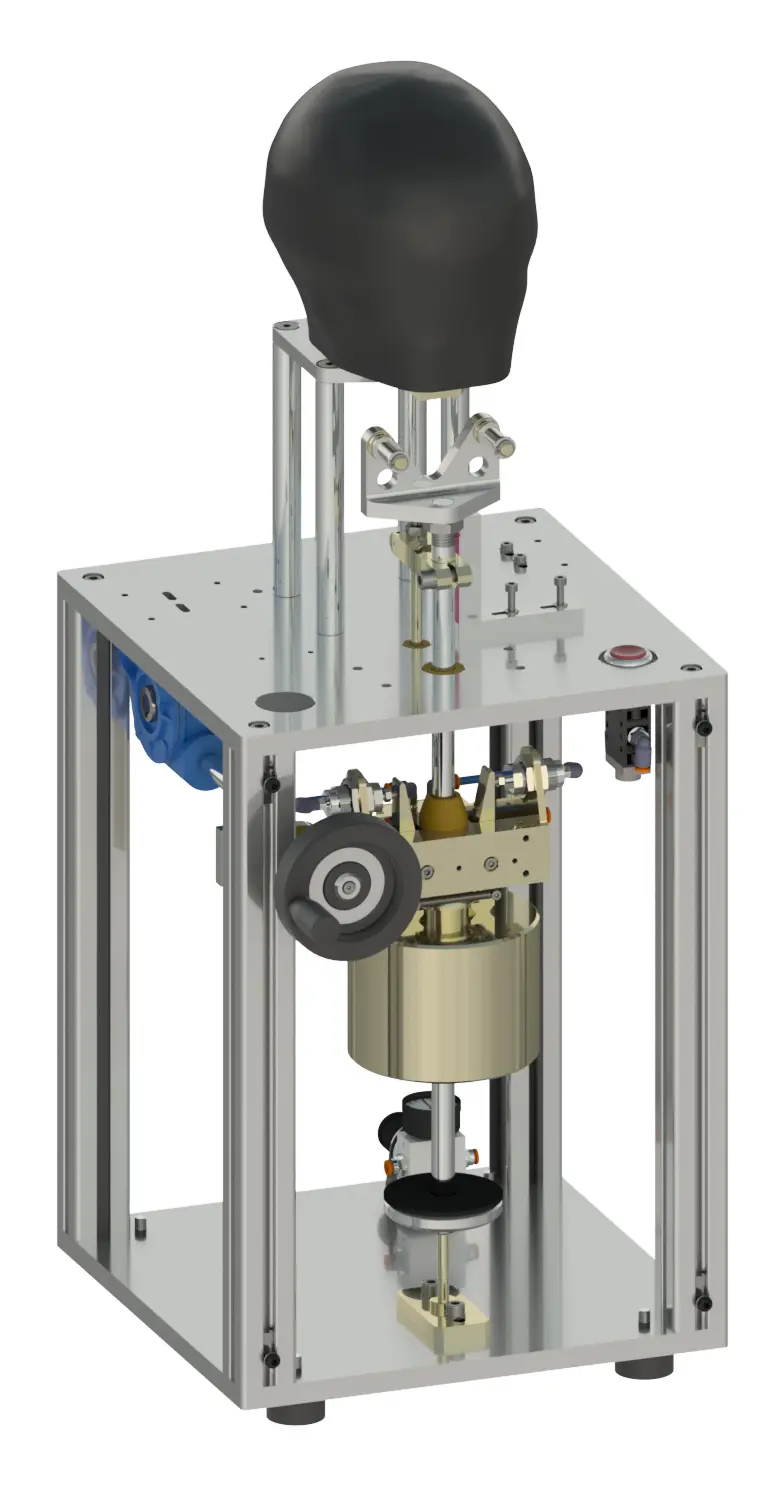

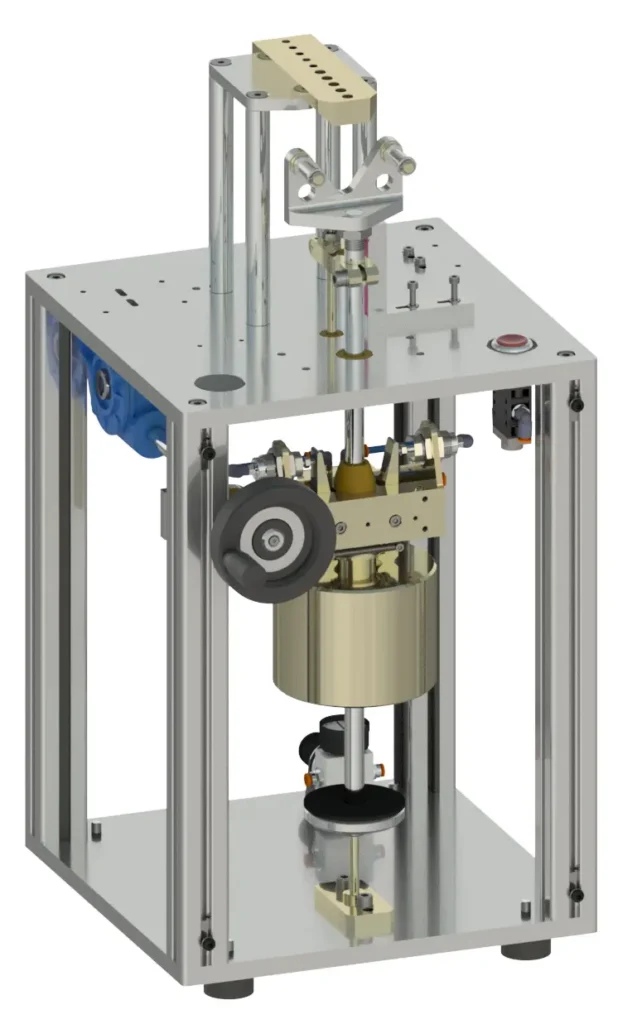

Frame constructed from aluminum ITEM profiles, supporting an adjustable headform holder
- Fork-and-rollers method (compliant with ANSI Z 87)
- Chromium-plated steel bar (Ø 16 mm), with a total mass of 1.5 kg (total preload)
- 10 kg drop mass, fixed drop height 10 cm
- Drop mass area totally enclosed by polycarbonate panels and not accessible by the operator

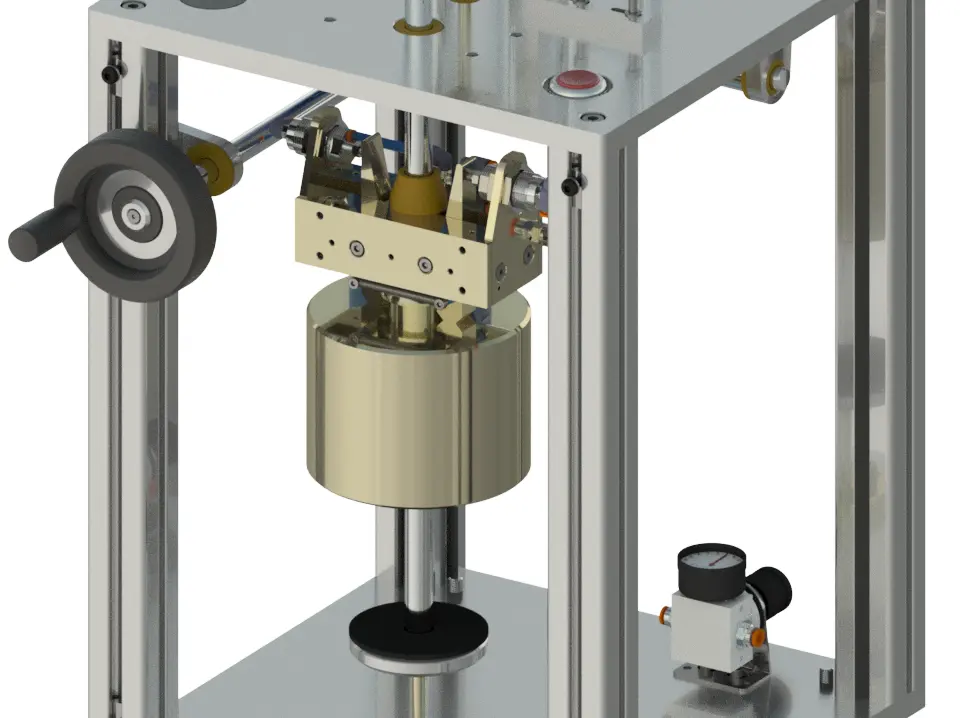

- Manual recovery system for the drop mass after impact via a manually operated small winch
- Pneumatically operated release system for the drop mass, driven by two pneumatic cylinders with push-button control

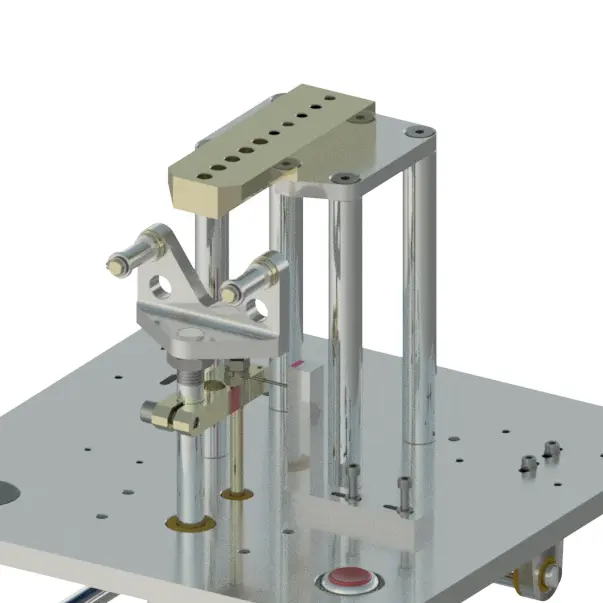

- Fork-and-rollers method with a sectioned headform
- Resin headforms included (size specified by the customer)
- Weight: 25 kg – Dimensions: 450 × 350 × 710 mm
