The kit includes the following parts:
Holder with 2 ball bushings made of Ergal 75, complete with a junction plate. This device is designed for installation on the drop carriage used for free-fall tests on MAU 1006 and similar models (requires the two-part drop carriage version).

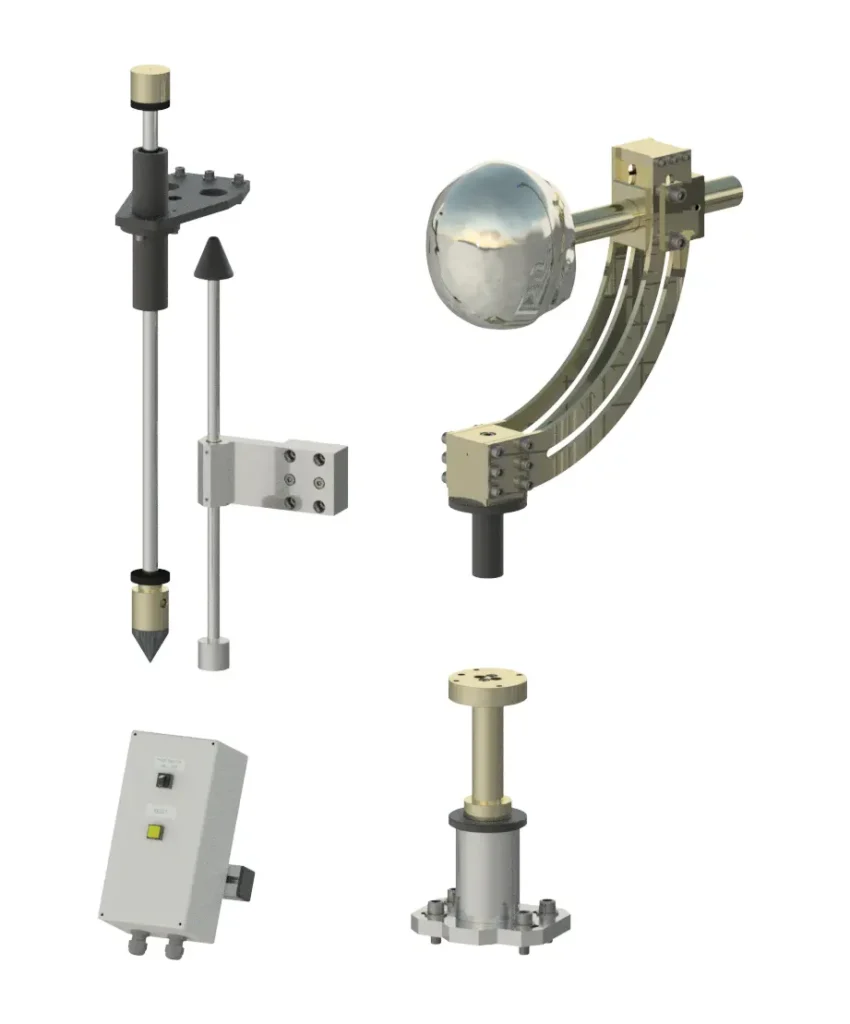

- Sliding rod with penetration cone (interchangeable geometries available), featuring a total assembly weight of 3 kg.
- Headform holders (two types included):
- Arc-shaped steel holder with a sliding support and a 40 mm diameter rod. This device enables multi-axis orientation of the headform (pitch, rotation, and tilt).
- Pivot-type holder to support the headform in a fixed vertical position, intended for top-impact tests only.
- Universal base compatible with both headform holders, equipped with an electrical insulation system.
- Extension brake with a guided sliding rod, designed to be secured to Item-brand aluminium structural profiles.
- Connection cables linking the steel rod, the base, and the contact detector.
- Control unit (220/24 V power supply) featuring a contact detection circuit (flip-flop), a visual warning light, and an acoustic buzzer.Control panel function: ON/OFF switch and contact reset button.
- Versatile design: Headform holders can be customized in shape to support various headform models.
- Applicable standards: Suitable for EN 397, EN 812, and equivalent testing methods.
Optional accessories (recommended):
Set of aluminium headforms: DOT series (S, M, L) or alternative ¾ EN/ISO cut headforms for CPSC and similar testing standards.
