The kit includes the following parts:

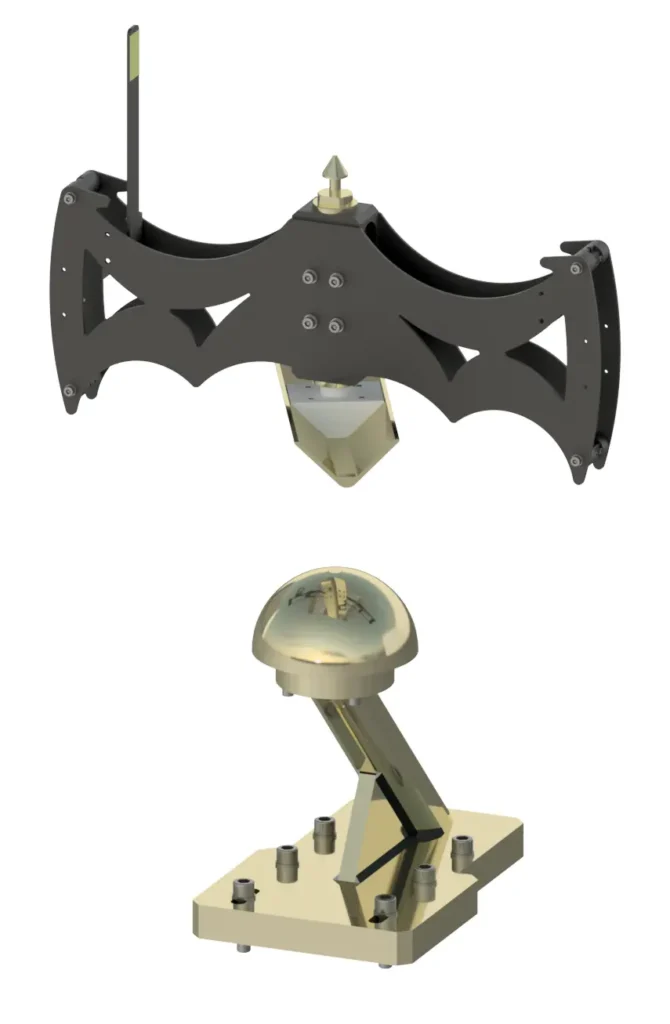

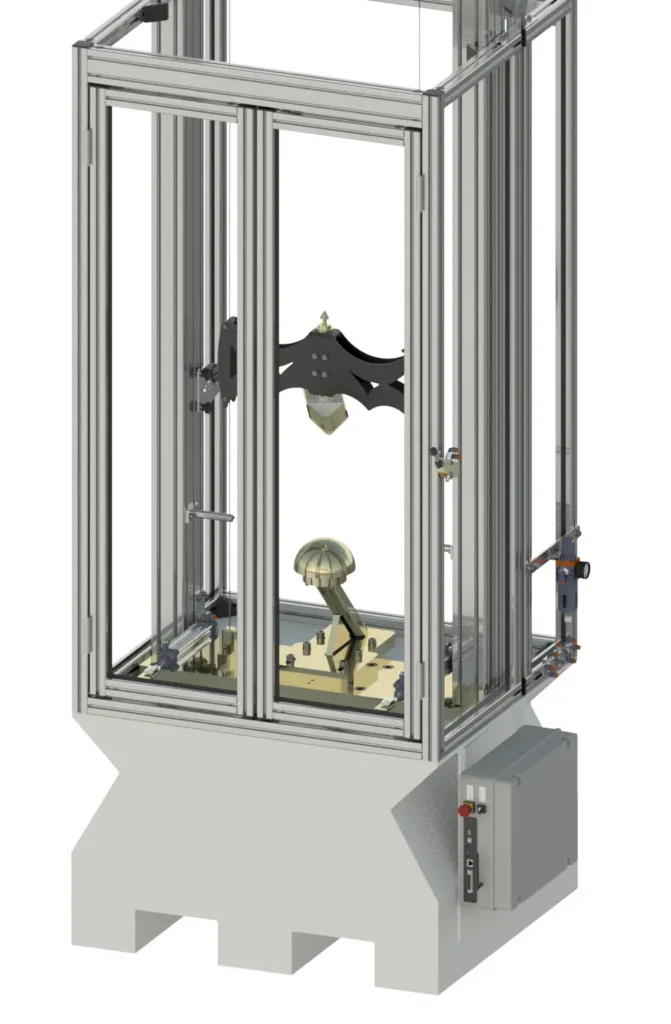

Drop carriage designed for twin-wire testing machines (total weight including impactor: 3 kg).
- Kerbstone impactor integrated into the twin-wire drop carriage.
- Headform holder featuring a 50 mm dia steel rod, mounted on a 20 mm thick steel base with a headform fixing plate.
- Steel hemispherical headform (R70 mm for medium/large helmet testing) equipped with a sliding sensitive pivot.
Optional accessories (recommended):
PCB quartz disc load cell, complete with cable and connector.
- Steel hemispherical headform (R60 mm for small helmet testing) equipped with a sliding sensitive pivot.
