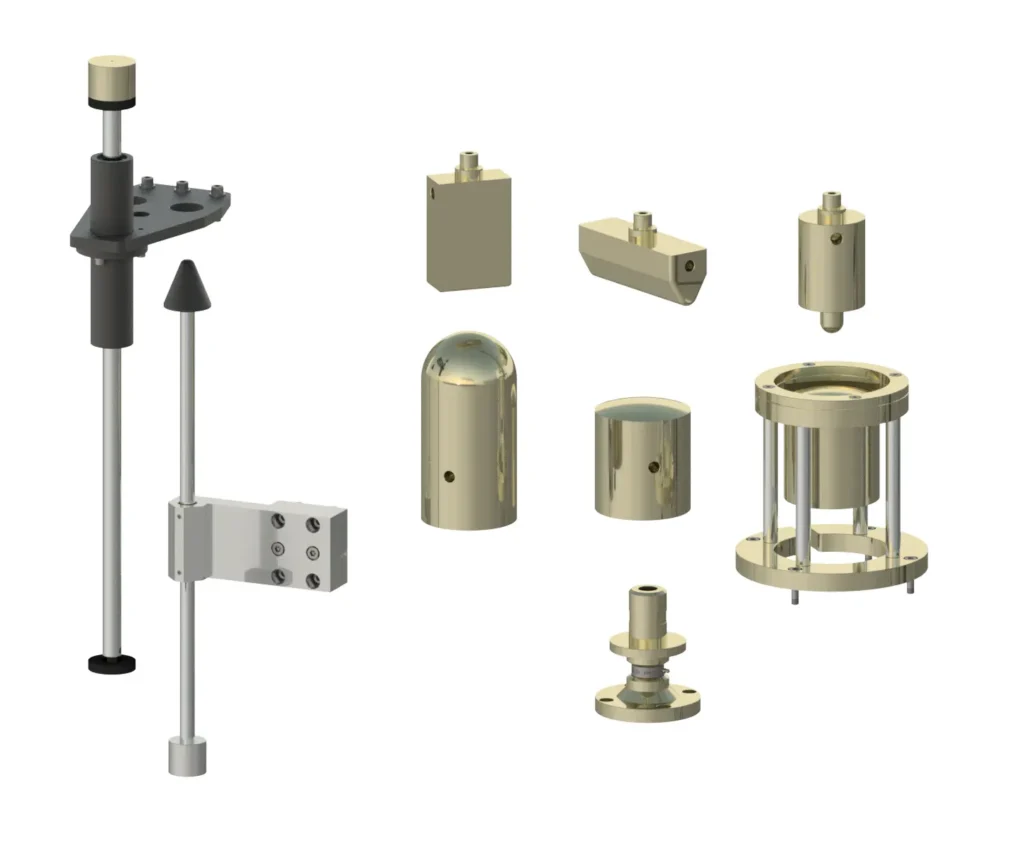

Kit components:
Holder with two ball bushings, made of Ergal 75, complete with junction plate.

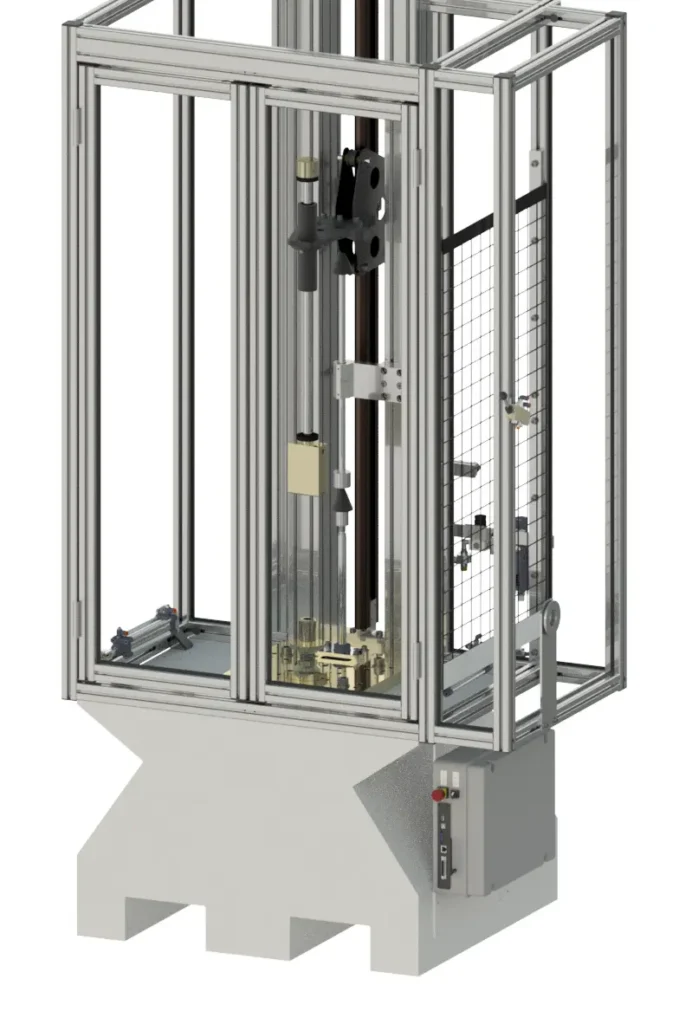

- Designed for installation on the drop carriage used for free-fall tests on MAU 1006 and similar models (requires the two-part drop carriage version).
- Sliding rod equipped with a kerbstone, rectangular, R12 hemispherical or alternative shape impactor (various geometries available), , with a total weight of 3 kg or 5 kg (custom weights available). Guard ring is also included .
- Three-piece load cell holder.
- Hemispherical R50 and R150 anvils (other radiused options available, e.g., R12.5, R17.5, R25, R35).
- Elongation brake with a driven sliding rod, designed for mounting on aluminum Item profiles.
Recommended accessories / options:
Kistler 9041 load cell with cable and 5073 charge amplifier, or alternative PCB load cell.
- Custom anvils, impactors, and rods available in various geometries and weights.
