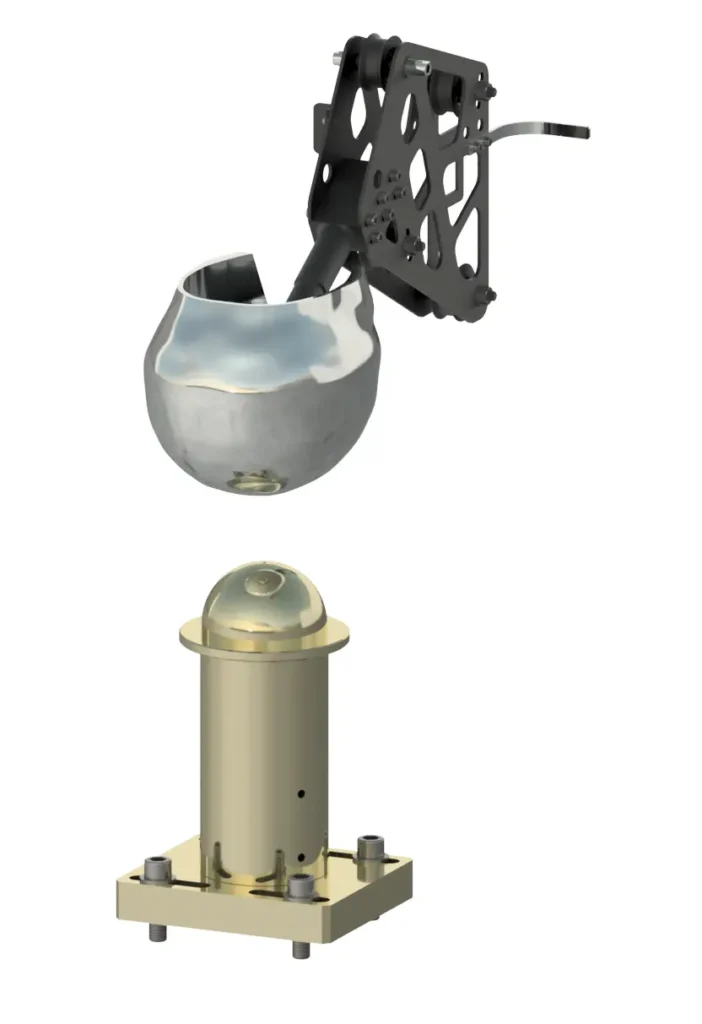

Kit composed by the following parts:
Anodized Ergal 75 side plates, water-jet cut.
- Ball joint (standard 2.75” diameter) with arm, secured to the plate by n. 12 M5 screws.
- Central housing for accelerometer installation integrated into the ball joint.
- Total weight of the complete drop carriage: 1.6 kg.
- Weight of the drop carriage frame: 0.75 kg.not including ball joint ,part of the arm , clamp and screws
- Hemispherical R48 anvil made of zinc-plated steel plates, easily interchangeable.
- Short anvil holder with internal laser pointer, indicating the correct impact point on helmets.
Suggested to be supplied with:
Accelerometer PCB 353 B 171 with cable and plug
- Set of DOT ( S – M – L ) headforms or other ¾ or cut headforms for CPSC or similar tests
