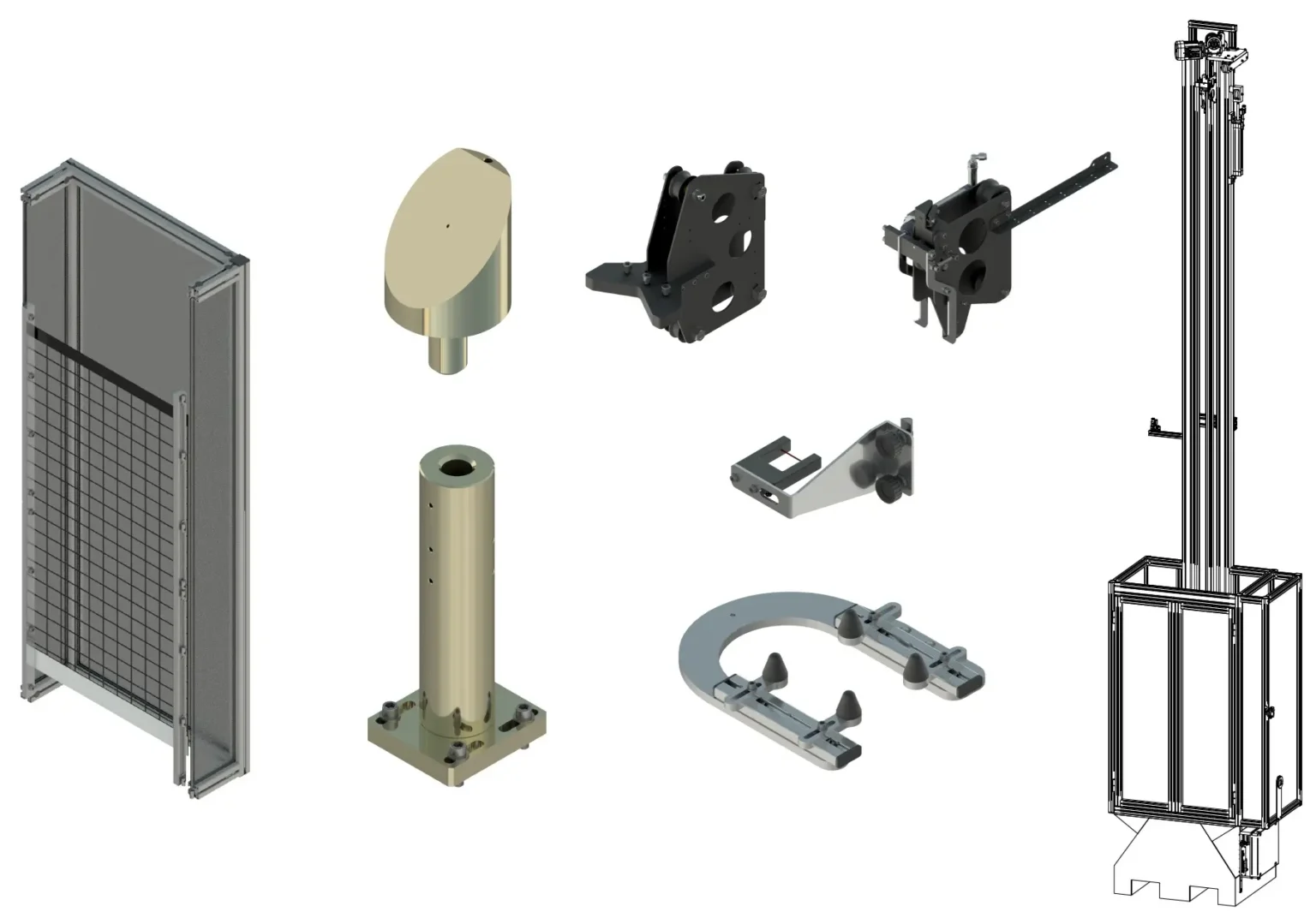

The kit is composed of the following parts:
Anodized Ergal 75 drop carriage (two-part version).
- U-shaped helmet holder with adjustable rubber cones to support the helmet in the impact position.
- New lift carriage to be used with the new drop carriage (old lift carriage models do not fit the new configuration).
- Modified anvil holder with a high-thickness base and increased-diameter bolts.
- Additional plate to be used as an interface between the existing base and the anvil holder, in order to adjust the anvil position.
- Additional protection cage section with a net to catch the helmet after impact and prevent rebounding.
- Pneumatic brake kit with valves required to prevent fast return of the pneumatic brake (not shown in the image).
- Modified photocell holder.
To be used in conjunction with:
EN 960/2006 full magnesium headforms with modified center of inertia, wireless data logging device model WIRX 6700 with DTS 6DX PRO A accelerometer, and new IDAS or old DLS series 3.00 software
