Technical data sheet :

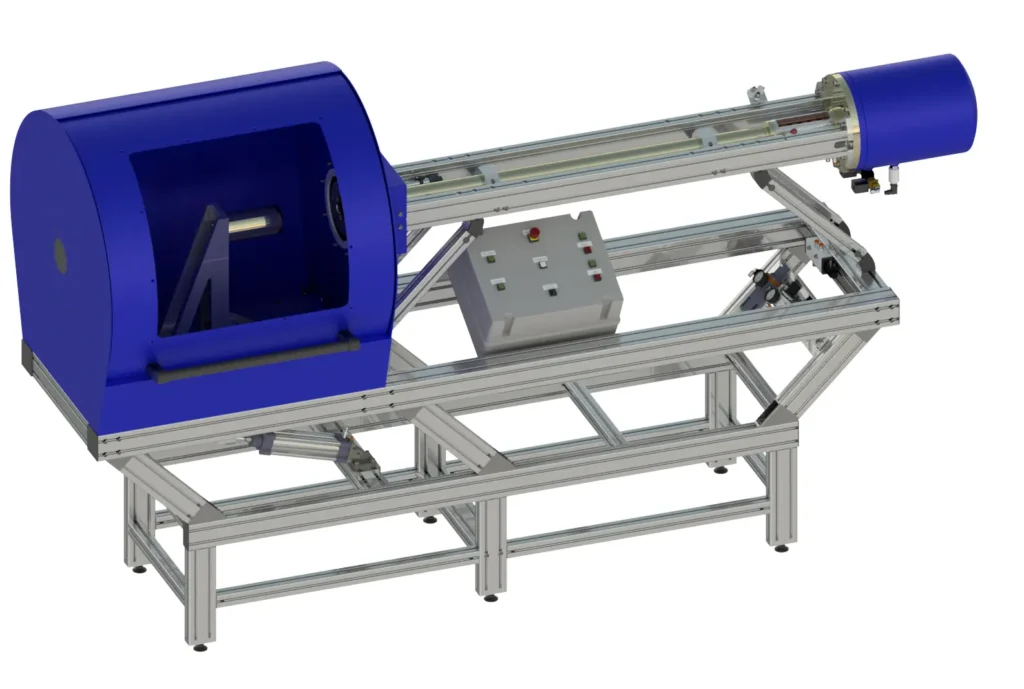

Frame: Made of anodized aluminum ITEM profiles.

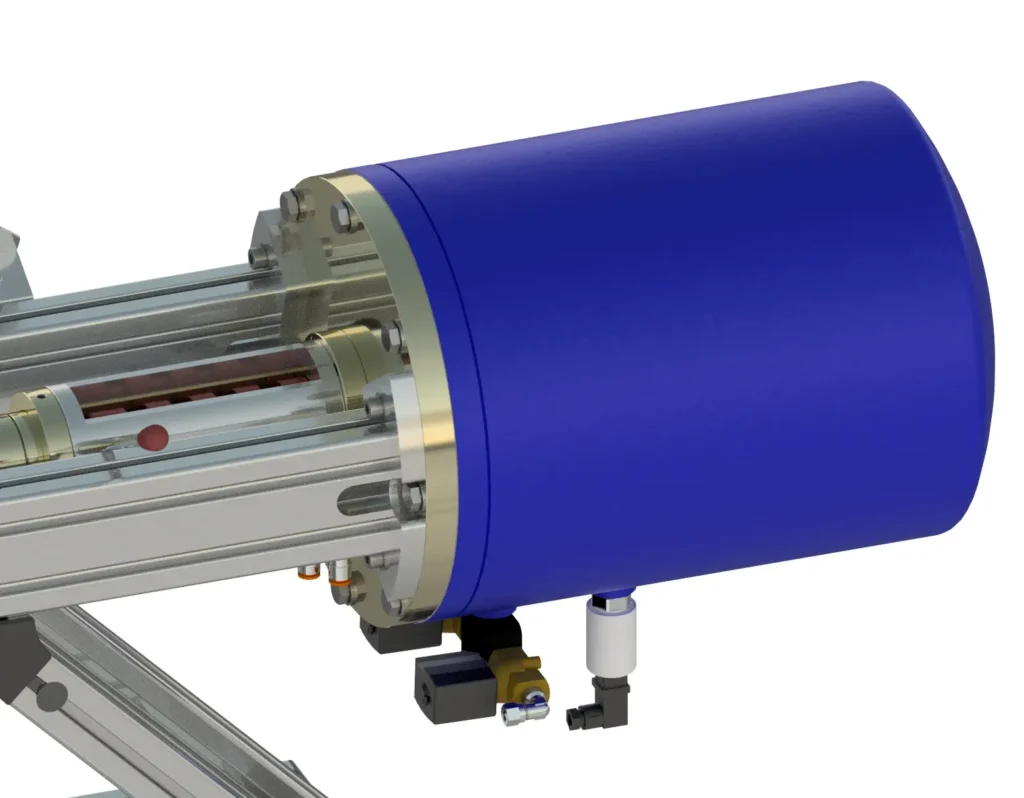

- Pressure Vessel: Steel compressed-air loading tank.
- Firing Mechanism: Special high-speed firing valve actuated by a pneumatic cylinder.
- Loading: Breech mechanism equipped with a safety sensor for aluminum dart loading.
- Sample Handling: Bi-directional sliding sample holder with position lock, securely clamped by two pneumatic cylinders.
- Pressure Control: Air-pressure loading system with an analog pressure gauge, interfaced with the PC via an integrated QASM7 board.
- System Management: Velocity recording and automated functions managed by proprietary GTM software via a USB-connected PC.

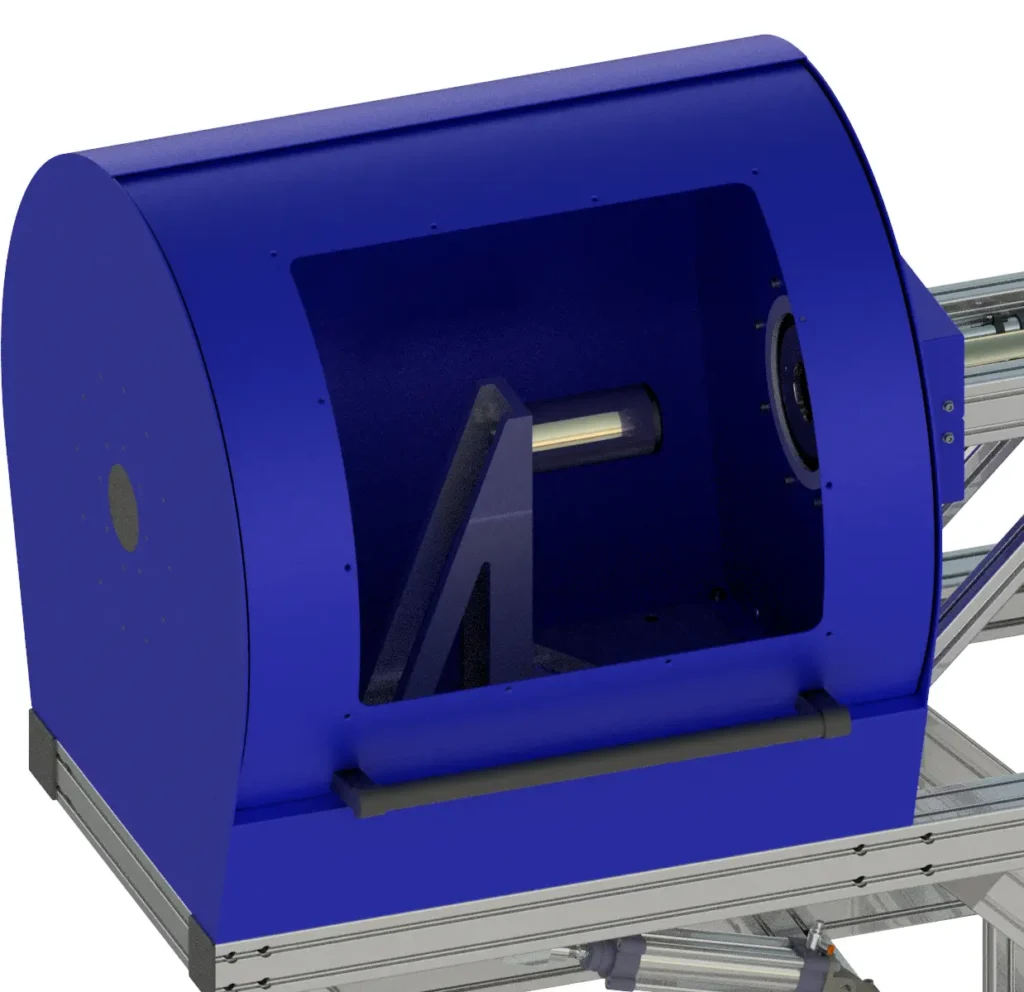

- Enclosure: Painted steel test cabinet featuring a transparent polycarbonate viewing window and an integrated door safety switch.
- Accessories: Two hard aluminum darts included.
- Performance: Maximum velocity up to 100 m/s.
- Dimensions (L×W×H): 2650 × 840 × 1550 mm.
- Power Supply: 220/240 V single-phase, 50 Hz; power consumption 0.7 kW.
