Technical data sheet :

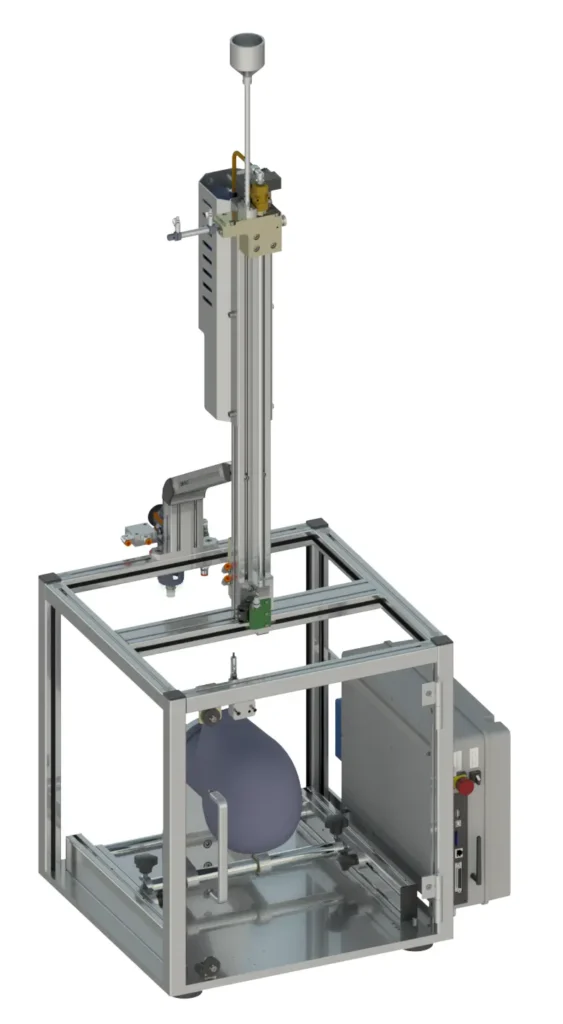

Frame: Anodized aluminum ITEM profiles with integrated polycarbonate viewing panels.
- Pressure Vessel: Loading air-pressure steel tank with 500 cm³ capacity.
- Firing Mechanism: Special high-speed firing valve actuated by a pneumatic cylinder.
- Loading System: Automatic sphere loading actuated by a pneumatic cylinder.
- Pressure Control: Air-pressure loading system equipped with a high-accuracy digital pressure gauge.

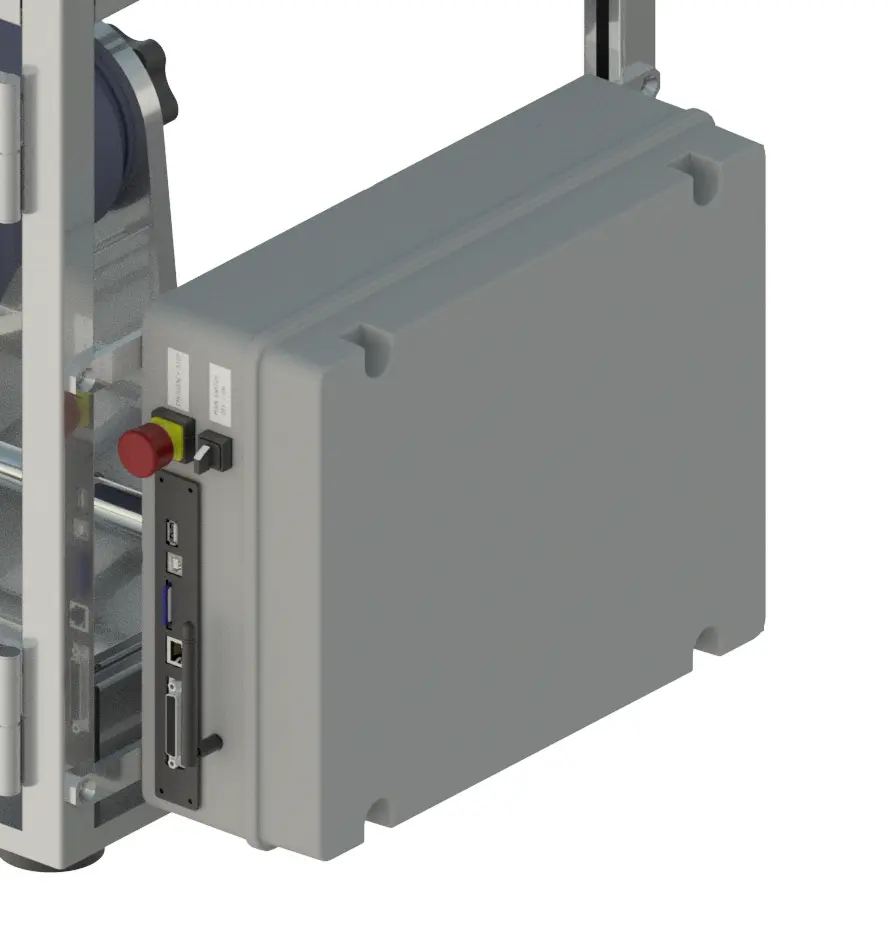

- System Management: Full software control for operations, pressure regulation, and speed recording via the supplied PC.

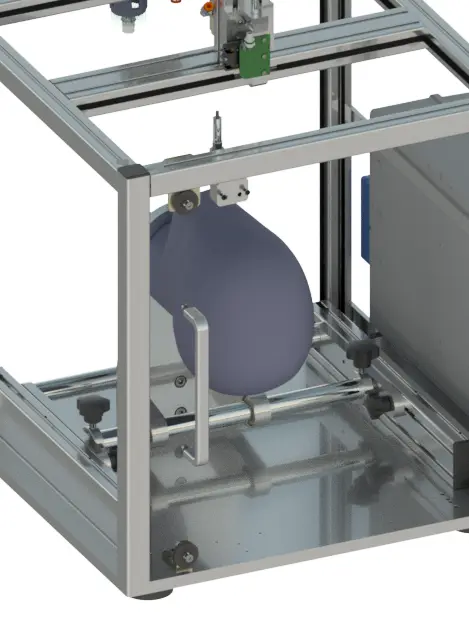

- Headform: Medium-size resin headform compliant with EN 168, fully adjustable in all positions.
- Supported Projectiles: 6 mm and 1/4″ calibers.
- Velocity Measurement: Speed recording system utilizing laser illumination and high-speed detectors.
- Weight: 45 kg.
- Overall Dimensions: 642 × 510 × 1470 mm.
