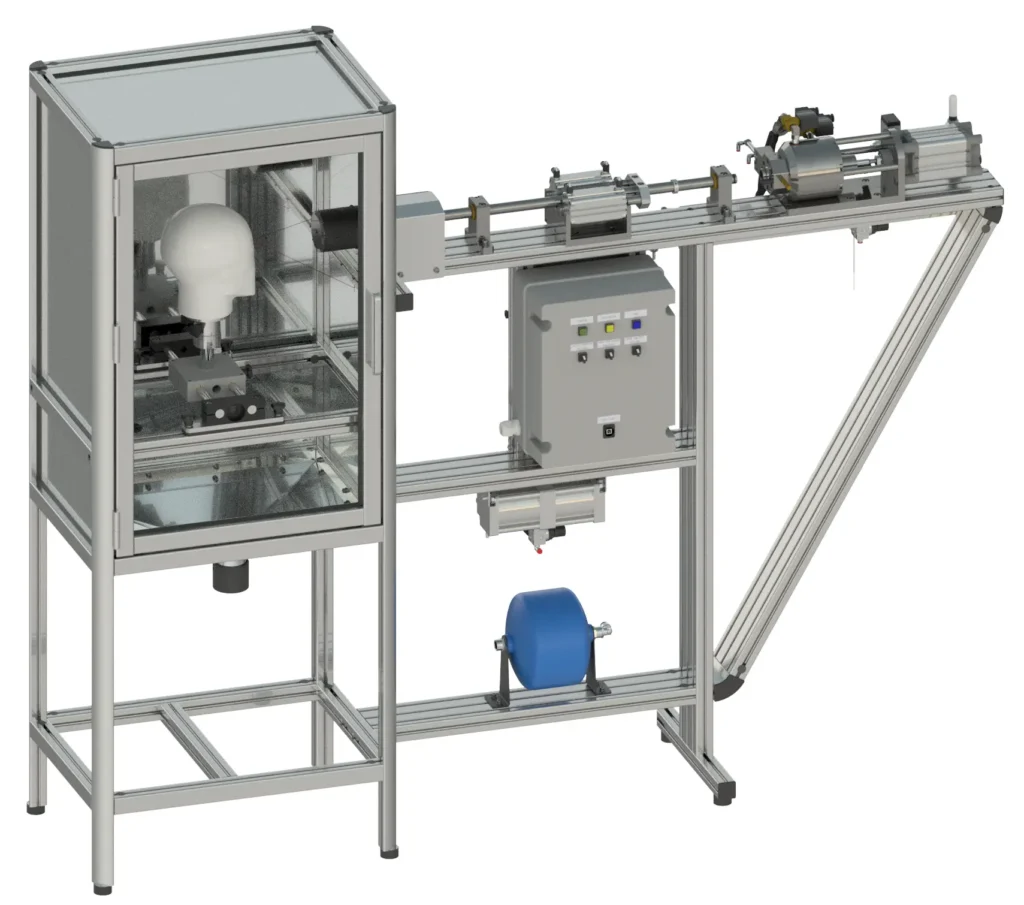

Overview & Technical Features:
Frame: Constructed from ITEM aluminum profiles.
- Pressure Vessel: Loading air-pressure steel tank with 500 cm³ capacity.

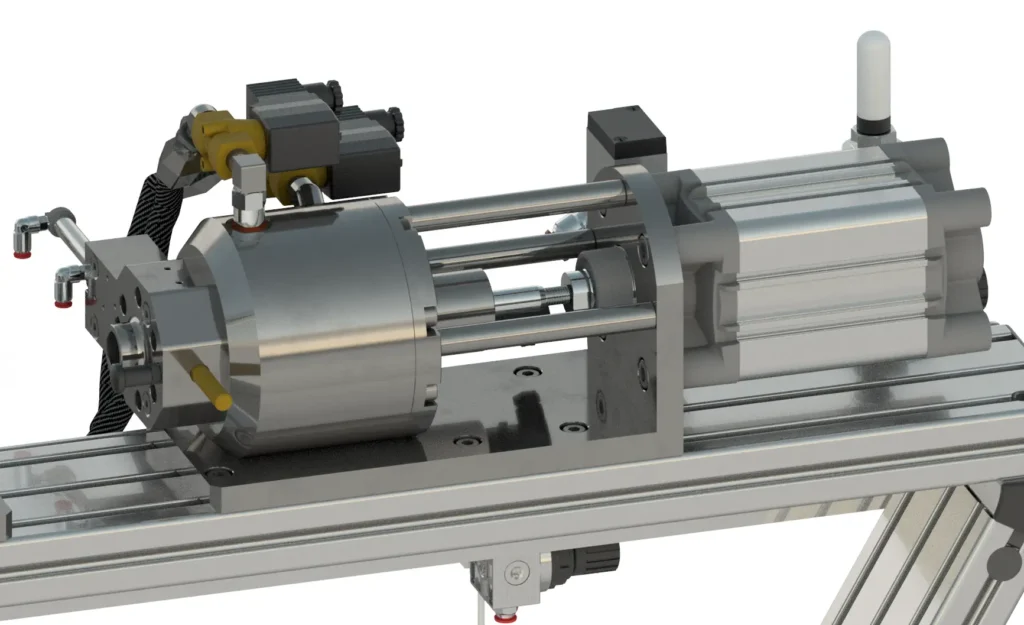

- Firing Mechanism: Special high-speed firing valve actuated by a pneumatic cylinder.
- Pressure Control: Air-pressure loading system equipped with a digital pressure gauge.
- Velocity Control: Electronic speed control managed via included PC software.
- Enclosure: Steel containment chamber with a polycarbonate inspection window.
- Headform: Medium-size resin headform compliant with ISO 12311/12 or EN 960 ( other models available).
- Supported Projectiles: 6 mm, 5 mm, 1/4″, 4 mm, and Diabolo pellets, calibers .22 or. 15 using sabot
- Performance: Maximum velocity up to 350 m/s at 60 bar using Helium gas, depending by the used pellets.
- Gun Barrels: Manufactured from specialized steel , same used in firearms .

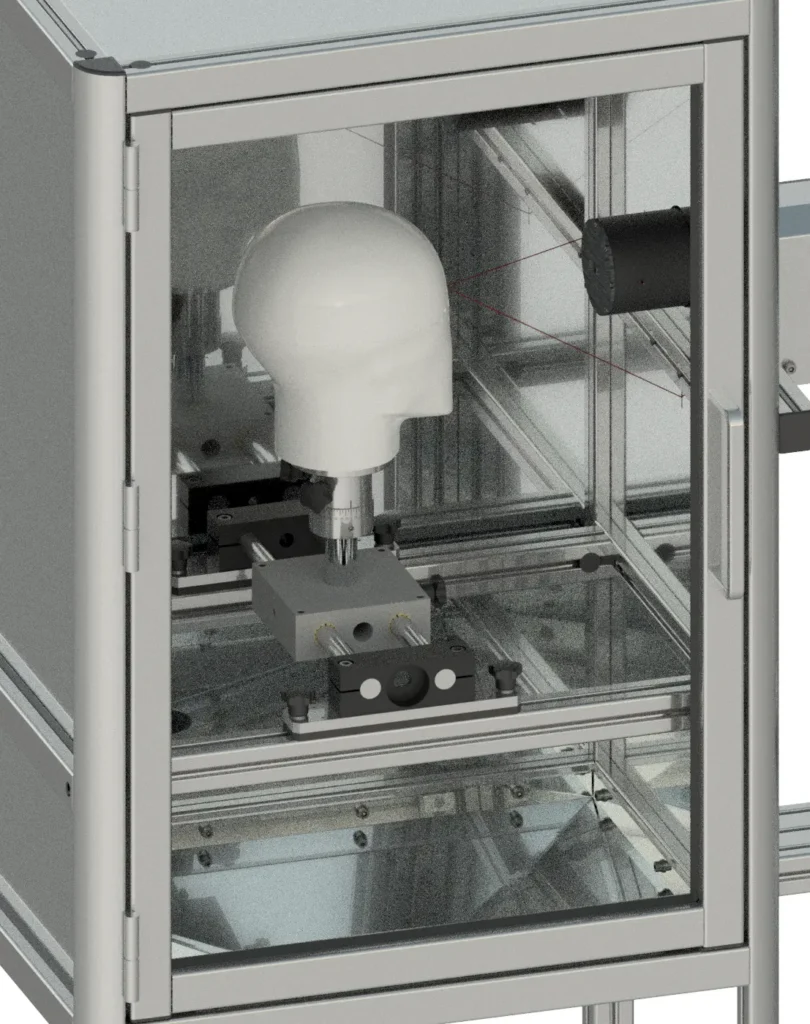

- Sample Positioning: Adjustable sample support protected inside a chamber with a polycarbonate window.
- Velocity Measurement: Speed recording system utilizing laser illumination and high-speed detectors.
- Weight: 150 kg. – Overall Dimensions: 2100 × 500 × 1720 mm.
Scope of the device:
Equipment for testing the impact resistance of eye protectors according to AS 1609, ANSI Z87.1, Snell M 2025, and MIL-PRF-32432 , EN 167–168, ISO 12311, ISO 18526-3, and ECE 22/06 , BS 4110.

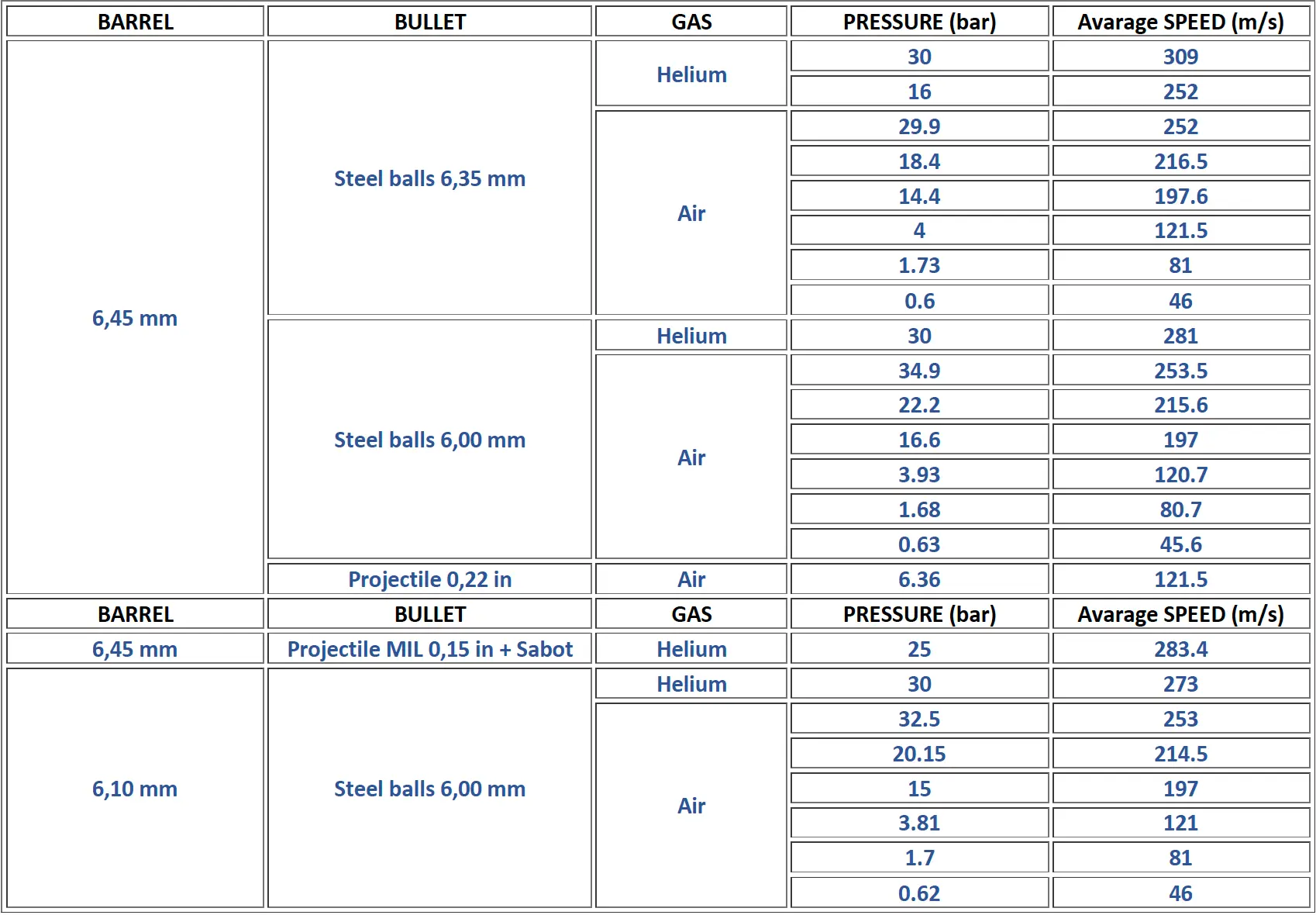

Typical test results
After 1 or 2 shots at the target pressure (necessary for mechanical stabilization), the variation between consecutive shots at the same pressure is:
- Less than 5% for 100% of the shots;
- Less than 2% for 90% of the shots;
Note:
These values may vary from HPG to HPG and depend on the environment in which the equipment is installed.
Optional Accessories
- MPA.50.PB. Pressure Multiplier: 5:1 compression ratio intensive unit designed for high-pressure operation as an alternative to gas cylinders.
- Automatic Ball Loader.
- SABOT: Specialized sabot support tailored for 0.15 caliber projectiles.
- High-Pressure Circuitry: Heavy-duty pneumatic circuit supporting up to 100 bar, engineered for testing at velocities reaching 400 m/s. Includes control valves and pressure transducers rated for high-flow calibration up to 100 bar.
- Motorized Z-axis with manual lateral adjustment
