Technical data sheet :

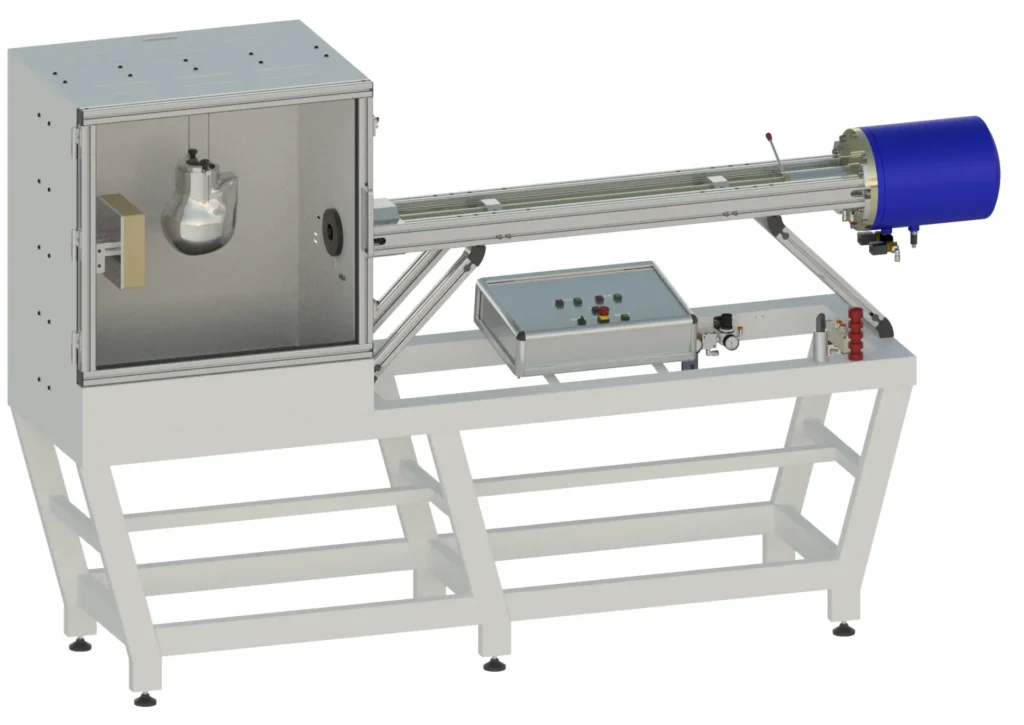

Frame: Made of anodized aluminum ITEM profiles.

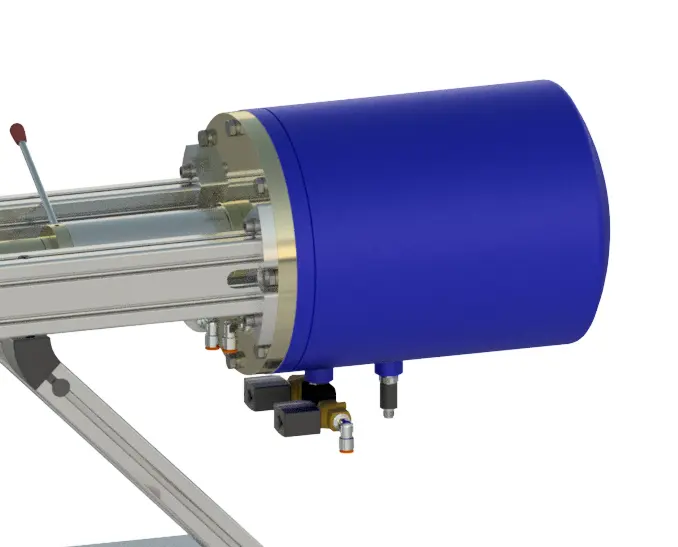

- Pressure Vessel: Steel compressed-air loading tank with loading and exhaust solenoid valves
- Firing Mechanism: Special high-speed firing valve actuated by a pneumatic cylinder.
- Loading: Breech mechanism equipped with a safety sensor for aluminum dart loading.

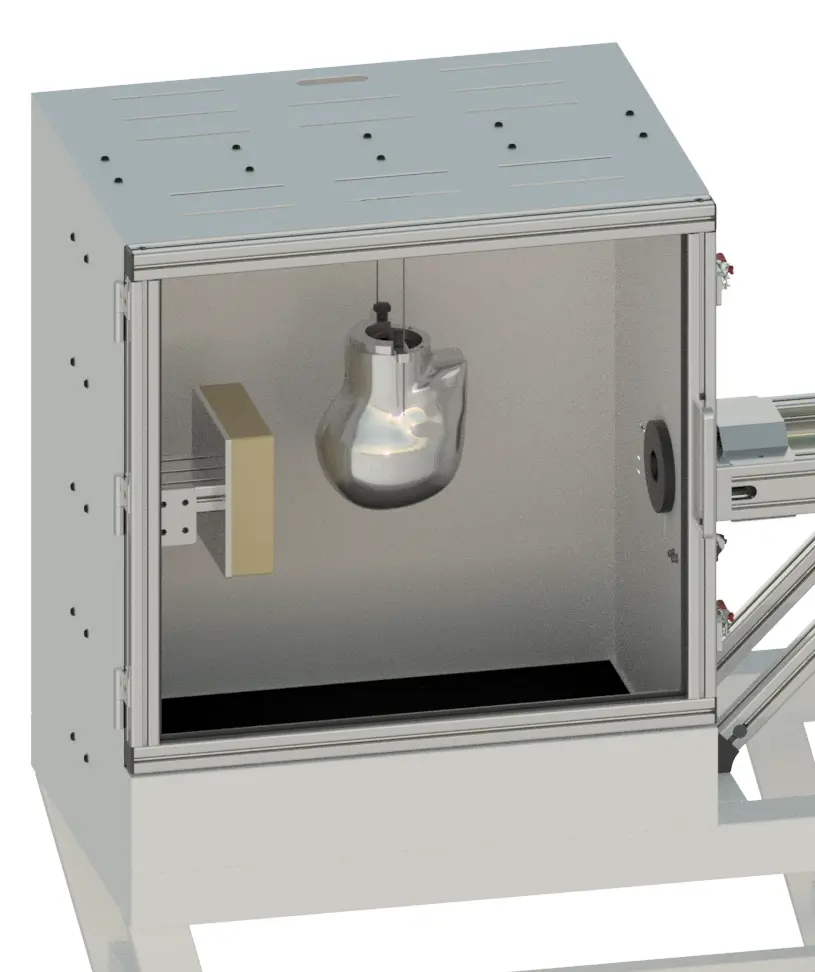

- Sample Handling: Bi-directional sliding headform holder with position lock. Two cables keep the headform suspended, allowing it to oscillate freely after the dart impacts the helmet.
- Pressure Control: Air-pressure loading system with an analog pressure gauge, interfaced with the PC via an integrated QASM7 board.
- Data Logging: Second QASM7 board with 3 analog inputs for 3 accelerometers to be installed in the headform. Data acquisition software is supplied together with a PC and a second screen.
- System Management: Velocity recording and automated functions managed by proprietary GTM software via a USB-connected PC.
- Enclosure: Aluminum ITEM profiles, 4 mm aluminum sheet test cabinet featuring a transparent polycarbonate viewing window and an integrated door safety switch.
- Accessories: 3 hard aluminum and steel darts included according to FIA 8860-ABP standards.
- Performance: Maximum velocity up to 100 m/s.
- Dimensions (L×W×H): 2650 × 840 × 1550 mm. – Power Supply: 220/240 V single-phase, 50 Hz.
