Technical data sheet :

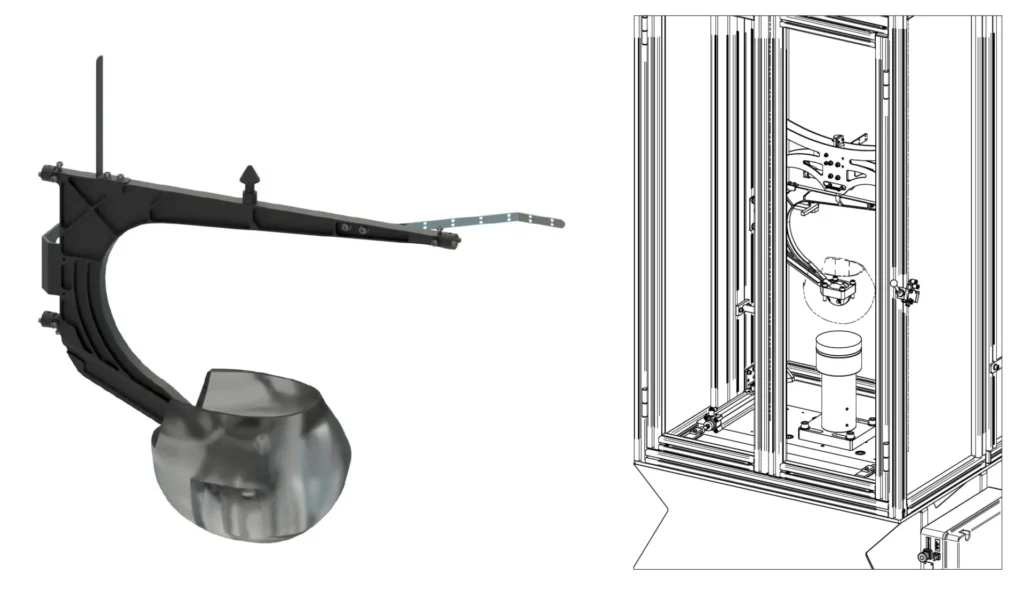

Single Frame cantilever drop carriage made of anodized Ergal 75, water-jet cut and fully CNC machined.
- Ball joint (standard 2.75” diameter) , composed of two Ergal half-spheres joined by six M6 bolts.
- Central housing for accelerometer installation integrated into the frame and ball joint.
- One-piece Ergal 75 clamp (interchangeable two-piece clamp available on request at extra cost).
- Drive system with three low-friction nylon guides.
- Interrupter blades (flags) for speed measurement and automatic braking included.
- Optimized center of gravity compliant with standard requirements.
- Total weight of the complete drop carriage: 1.55 kg.
- Weight of the drop carriage frame: 0.80 kg.
