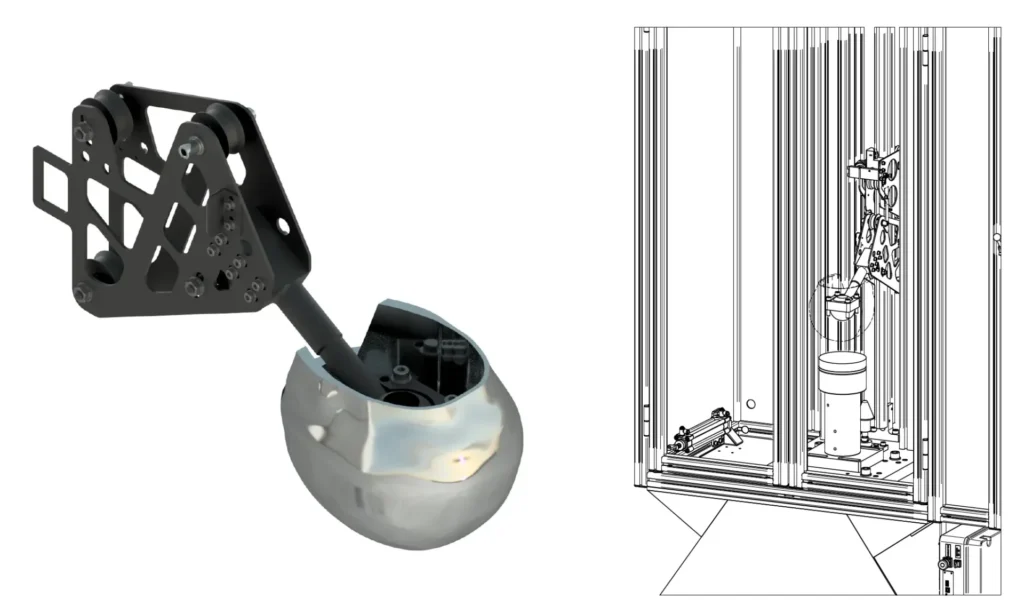

Technical data sheet :
Anodized Ergal 75 side plates, water-jet cut.
- Ball joint (standard 2.75” diameter) with arm, secured to the plate by n. 12 M5 screws.
- Central housing for accelerometer installation integrated into the ball joint.
- One-piece Ergal 75 clamp (interchangeable two-piece clamp to adjust total mss , available on request at extra cost).
- Drive system with four low-friction nylon-carbon reinforced wheels, featuring adjustable clearance when coupled to the rail and equipped with high-speed ball bearings.
- Interrupter blades (flags) for speed measurement and automatic braking included.
- Cable routing support for the accelerometer with left or right exit option.
- Optimized center of gravity compliant with standard requirements.
- Total weight of the complete drop carriage: 1.6 kg.
- Weight of the drop carriage frame: 0.75 kg.not including ball joint, part of the arm, clamp and screws
